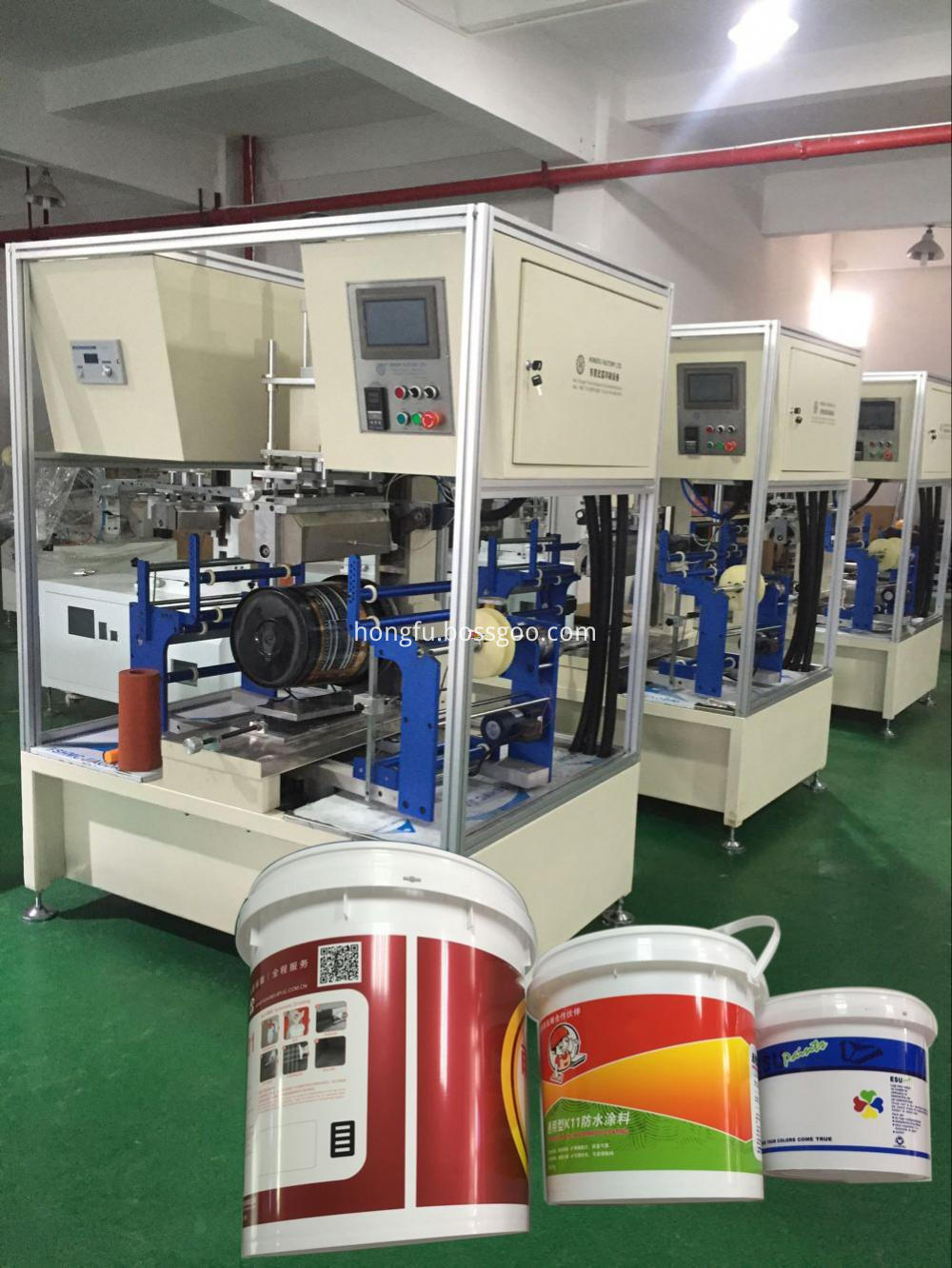

Description
1. PLC controller form Japan, easy to operate, automatic working by three parameter: perimeter of bucket top and bottom, bucket height.
2.Adopt import air pressure sensor, hot stamping pressure/ temperature/ speed/ time are adjustable.
3.The mould bottom can adjust angle and front-back position.
4.Max printing speed is 4 seconds circularly.
5.Tension control system makes heat transfer film smooth without fold.
6.High precision import sensor combine with double-speed receiving film.
7.Heat transfer pattern is stable, specially suitable for Bar code and OR code.
8.XYZ triaxial servo match the taper and working track which can make sure picture heat transfer in high precision position.
9.The patent number is: ZL201620065617.6
Tech-Data
|
Max. Printing size |
H280XΦ320MM |
|
Printing speed |
300-350 PCS/H |
|
Air Pressure |
5-7 BAR |
|
Printing output |
4 S/PCS |
|
Heating power |
220V 50-60MHZ/3800W 35A |
|
Weight |
720KG |
|
Machine size |
1600x1200x1900MM |
